Video Wall Processor Debugging: Common Issues and Troubleshooting Solutions

/in /by
Most video wall display issues during on-site debugging come from software configuration errors, not hardware faults. This concise troubleshooting guide covers the most common FPGA video wall processor software problems, core causes and quick fixes to help engineers resolve failures fast and speed up project delivery.

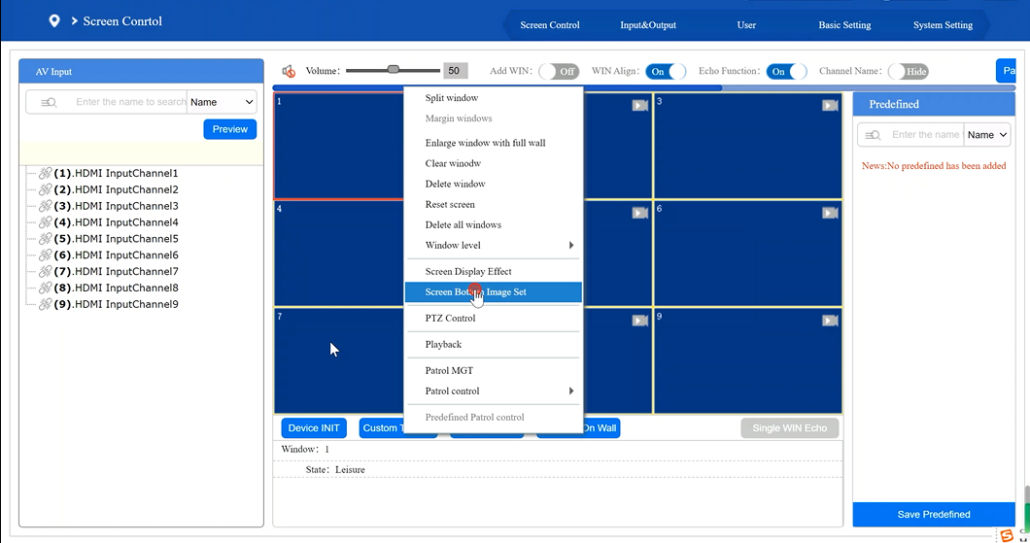

1. Device Connection & Login Failure

Symptoms: Control software cannot detect the processor, device shows offline, Web GUI login fails, or connection times out.
Causes: Mismatched LAN IP segments, conflicting network adapters, firewall port blocking, IP address conflict, and loose network cable connections.
Solutions: Disable redundant network adapters, unify IP segments for computer and processor, turn off firewall interception, replace high-quality CAT6 cables, and set a static IP to avoid network conflicts before reconnecting devices.

2. Black Screen & No Signal Issue

Symptoms: Software shows normal connection, but the video wall displays no signal or partial black screens.
Causes: Wrong EDID settings, mismatched HDMI protocol versions, incorrect channel mapping, enabled screen standby mode, and long-distance signal attenuation.
Solutions: Enable auto EDID matching and lock standard 1080P/4K@60Hz resolution, correct channel binding, turn off screen standby mode, and use HDBaseT or fiber transmission for long-distance deployment.

3. Screen Flickering, Tearing & Color Inconsistency

Symptoms: Picture flickers, tears, or shows uneven color and brightness after signal switching.
Causes: Unsynchronized frame settings, disabled color calibration, mixed signal resolutions/frame rates, and mismatched firmware & software versions.
Solutions: Turn on seamless switching and color correction functions, unify all signal parameters, and upgrade firmware and control software to the latest official version.

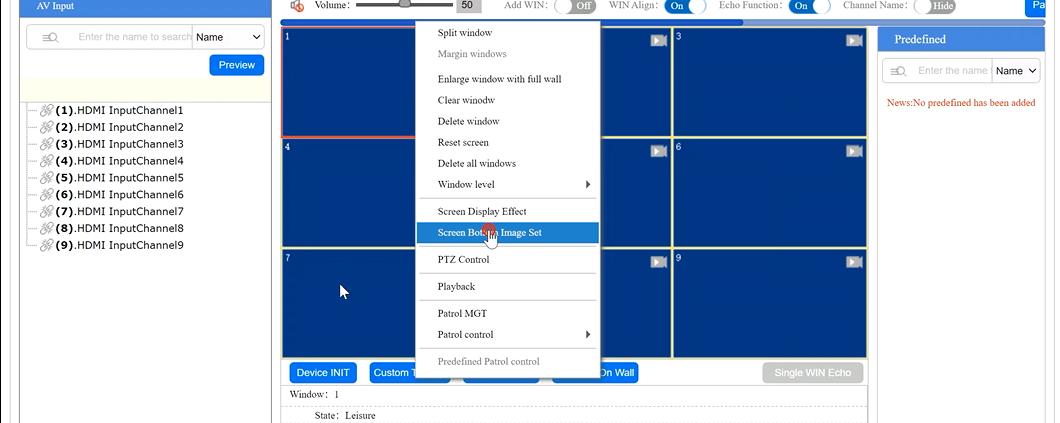

4. Splicing Layout Disorder

Symptoms: Misplaced, reversed and disordered splicing images; failed custom curved or portrait screen layout settings.
Causes: Wrong screen number sequence, unenabled portrait rotation, over-limit custom resolution, and unsaved layout parameters.
Solutions: Recalibrate screen sequence, enable 90°/180° screen rotation, set resolution within hardware limits, save layouts and restart devices to take effect.

5. Floating Window & Roaming Abnormality

Symptoms: Floating windows cannot zoom or roam freely; multi-layer overlay freezes and picture-in-picture fails.
Causes: Locked window quantity limit, disabled cross-screen roaming, and excessive overlay layers leading to system overload.
Solutions: Unlock full roaming and zoom functions, control overlay quantity, and restore default software settings to fix abnormal restrictions.

6. Scene Preset & Parameter Import/Export Failure

Symptoms: Unable to save or recall scene presets; parameter import/export fails or data is lost after restart.
Causes: Insufficient storage, non-standard operation steps, and version mismatch between firmware and parameter files.
Solutions: Standardize save and application steps, clean invalid presets, and match parameter files with the current device firmware version.

7. Remote & Central Control Docking Failure

Symptoms: Web remote access fails, Crestron/AMX central control is unresponsive, and mobile control cannot sync.
Causes: Blocked router ports, wrong RS232 baud rate settings, and mismatched central control protocols.
Solutions: Release network port permissions, calibrate serial port parameters, and match standard communication protocols to complete docking.

8. Firmware Upgrade Failure & Software Crash

Symptoms: Firmware upgrade interrupted, software freezes, and device configuration disorder after upgrading.
Causes: Unstable network, mismatched firmware packages, and long-term system cache accumulation.
Solutions: Upgrade firmware under stable LAN connection with official packages, clear software cache regularly, and restore factory settings to fix configuration chaos.

9. IPC Camera Decoding Abnormality

Symptoms: RTSP camera decoding fails, monitoring picture lags, and multi-channel IP signals display abnormally.
Causes: Wrong RTSP address, insufficient decoding load, and network packet loss caused by unstable bandwidth.
Solutions: Verify correct RTSP streaming addresses, reasonably allocate decoding channels, and optimize network bandwidth for stable monitoring wall display.

Debugging Summary & Optimization Tips

Over 90% of video wall display faults are caused by non-standard software configuration instead of hardware damage. Follow these rules for stable and efficient deployment: unify LAN segments first, enable EDID adaptation and seamless switching, save layout parameters timely, upgrade official firmware regularly, and back up device configurations to avoid repeated debugging.
